You win! š¤£
Nice BikeOkay, my obsession has narrowed down so much over the years, but it been bikes since I was a little cuss. I'm not really obsessed with the visual as much as the nuts and bolts, and being creative about it.... it's building with low budget. For instance, my personal ride looks old and not well cared for, and that's just how I like. Been like that for years now. After I built the Military Bonneville, it became unenjoyable being everywhere I stopped, I'd get inundated with questions about it. Sure, it was cool having people gawk over my bike at first. So I fly under the radar with a bike that most won't give a second look. The nuts and bolts tell a slightly different story... Put in a set of larger / higher flow injectors out of a 1200, opened the air intake a bit, high flow air filter. Modified fuel map, and a wide open exhaust that barks. The exhaust is partly hand built. I can't justify 1600$ for a nice 2 into one exhaust, so it was a set of headers made for the 900 engine, and a 200$ slip on mid pipe & muffler combo also for the 1200 engine bikes. A little of this and a little of that to make it work, heat shield and crash protection for the pipe and muffler
, header wrap, and bingo... a bit of a sleeper bike.

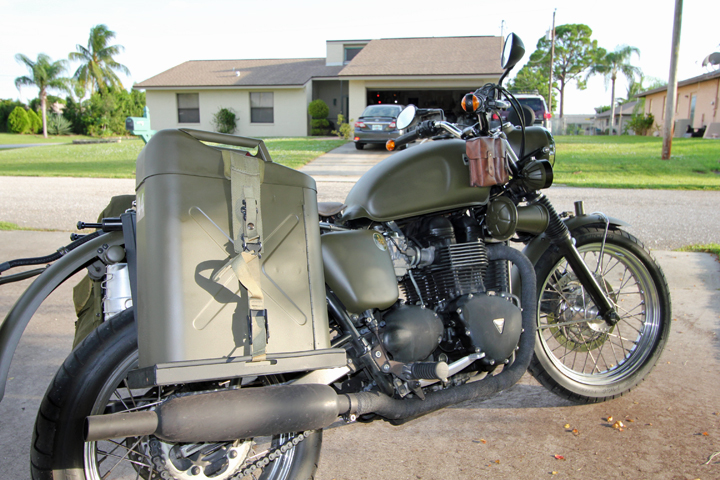

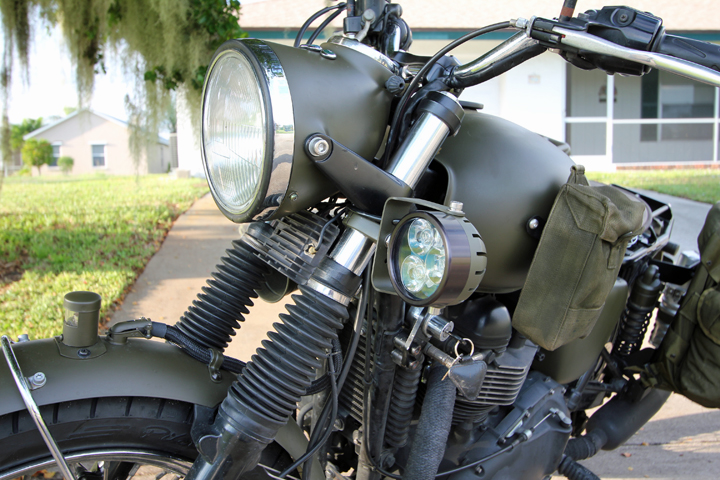

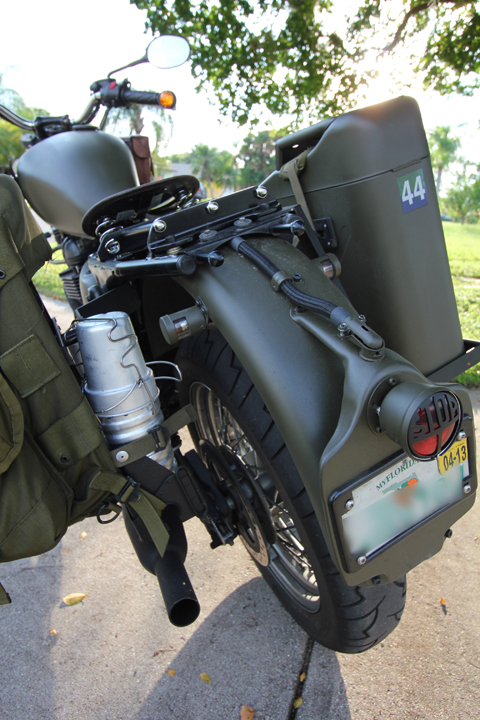

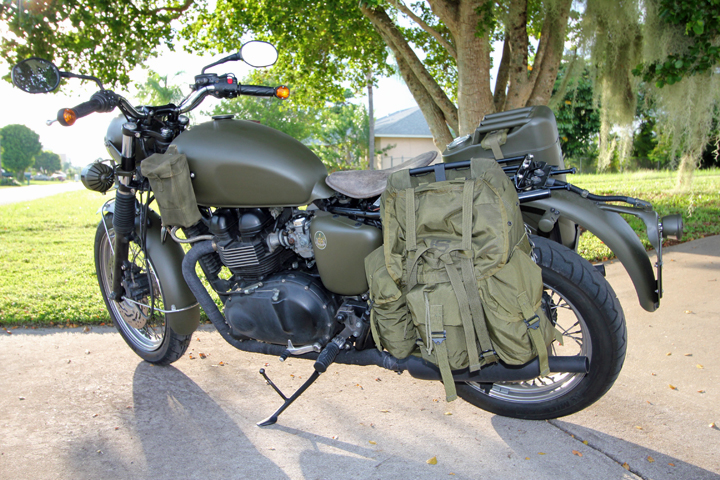

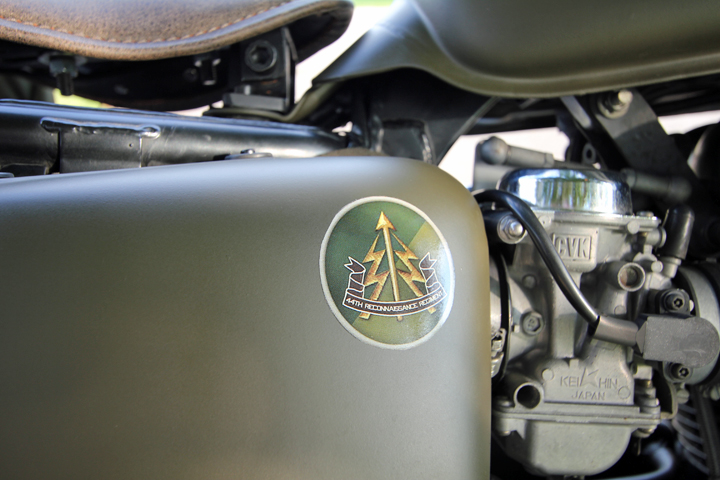

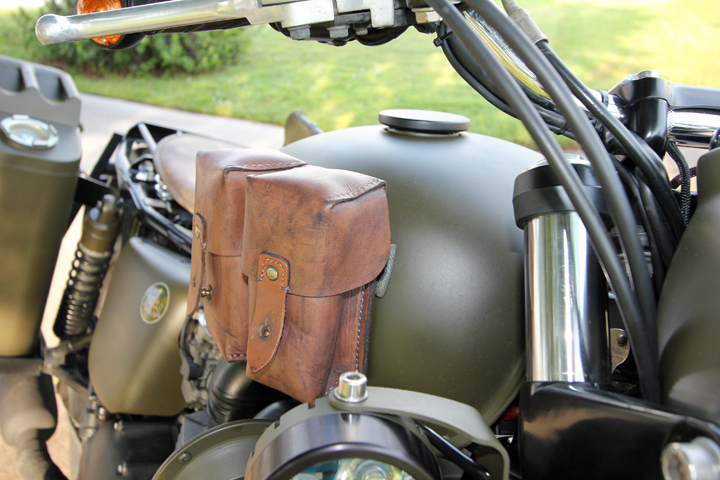

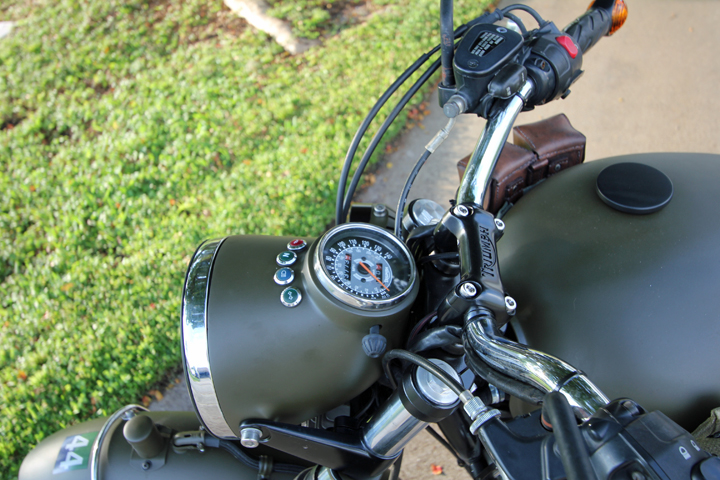

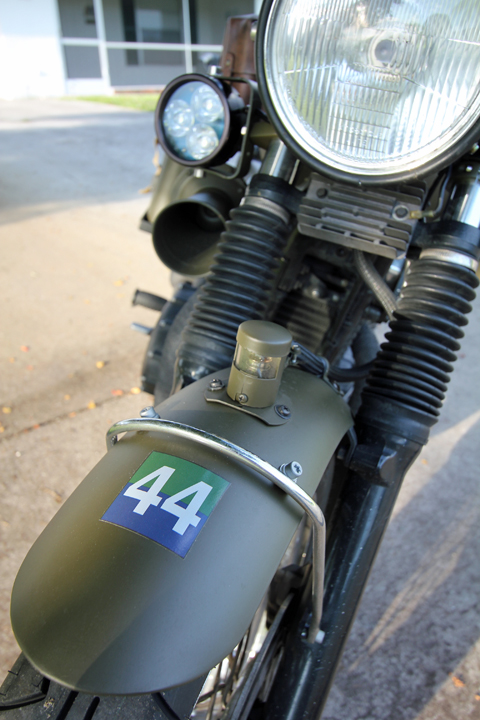

Here's the 2005 Triumph Bonneville converted to a vintage military bike... lots of odd stuff on this one. Left side has a Nam era ALICE pack on it's frame, and removable to hike away with. Ammo bag on tank for Brit Sten gun. Right side has a faux "jerry can" which opens up at the top and rear. Under the top is 2 USB charging ports, Eu to US cig lighter adapter, and mini inverter that will run a laptop. The rest was storage for the camp kitchen. Leather ammo pouches, Russian Nagan. Horn is off a 34 GMC pick up. Vintage style headlight bucket to hold spedo, bar end turn signals, and led driving lights. The marker light on the front fender, and the rear turn signals are 1955 dodge power wagon license plate lights... leather solo seat on springs like the old days LOL... at the rear I used a replica Vincent tail / stop light and plate bracket. There is also a Swiss "volcano" stove tucked behind the Alice pack. Amazing little stoves... and a small fender rack made from this and that. The engine also had general mods.... removed the airbox, open pod filters, went from stock jetting (110 main 40 pilot ) to 128 and 45's. One tooth up on the countershaft sprocket for better top end at lower revs, a igniter from another model that raised the rev limit to 8500 from 7800. Of course an open exhaust, wrapped headers, and to finish it off I tweaked the camshaft timing to regain the torque lost in the gearing change. Still my favorite modern Bonnie engine, 790 cc, and nice cam profiles and duration. They went with those cams to get as much HP as they could under emission standards. I've taken those cams and put them into the 865cc engines as a hop up. So, that's the Bonnie build. Did it all in the garage, including paint work. Took a first place with it in the "retro" class a a vintage show. I'll post another favorite bike I had the pleasure of working with soon.
View attachment 9094View attachment 9095View attachment 9096View attachment 9097View attachment 9098View attachment 9099View attachment 9100View attachment 9101
I should have never sold my 65 Mustang. Biggest regret was not buying an all original low mileage 40 Ford Coupe when I was 15.
I am a Ford guy.
That is the model I have. My son had a 65 T-5 that needed a lot of work. He sold it to the Mustang Museum in Alabama. They have it on display as a barn find documented T-5.
